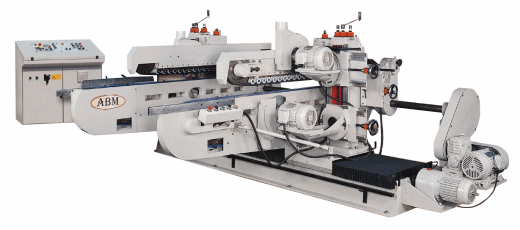

Automatic Double End Tenoners >> HS-66K, HS-86K Automatic Double End Tenoners


HS-66K, HS86K

A B C
SPECIFICATIONS:
 ITEM \ MODEL HS-66K

HS-86K
Max. Working size (T) x (W) x (L) 50 x 610 x 1850mm 50 x 610 x 2450mm

Main saw dia. x Spindle dia.

 305m/m Ø (12") x 25.4m/m Ø (1")
Scoring saw dia. x Spindle dia.

203m/m Ø (8") x 25.4m/m Ø (1")
Vertical saw dia. x Spindle dia.

203~254m/m Ø (8"-10") x 25.4m/m Ø (1")
Feed speed

6~20m/min Auto-speeding
Main saw motor

2P x 5HP (3.7kw) x 2
Scoring saw motor

2P x 3HP (2.2kw) x 2
Vertical spindle motor

2P x 5HP (3.7kw) x 2
Feed motor

4P x 2HP (1.5kw) x 1
Width-setting motor

4P x 1HP (0.7kw) x 1
Machine size 3450 x 2750 x 1400mm

4250 x 2750 x 1400mm
Machine weight 3250kg

3650kg

* Specifications subject to change without prior notice.
