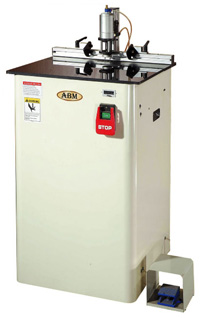

Vertical / Horizontal Boring Machine >> HS-2100 PACKET BORING MACHINE

FEATURES:
  • Standardly  furnished with a 3-spindle boring heads. The pitch from spindles are 3/4", 1"
    , 1-3/4"
  • Entire boring cycle can be fast and conveniently accomplished by pressing the foot pedal.
  • Two stoppers provide convenient positioning of workpieces.

  • power twist belt assures durability.

  • Cycle counter is available.

Drill 2 Pocket Holes at time. Multiple boring heads

2 adjustable stoppers Drill bits

SPECIFICATIONS:

MODEL

HS-2100
Boring head 3 holes
Table size (mm) 610*590 mm
No. of clamp 1
Total motor power 1.5 HP
N.W./G.W. 90 kgs/110 kgs
Machine size 610 x 590 x 1200 mm
Packing size 700 x 700 x 1300 mm

* Specifications subject to change without prior notice.
