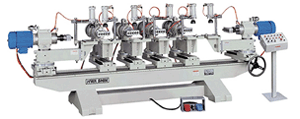

Vertical / Horizontal Boring Machine >> HS-502, HS-503, HS-504, HS-505, HS-506 Six Spindle Boring Machine

FEATURES:
  • 3HP motor direct drive mechanism.
  • Horizontal 360° swivel drill head.
  • Safety air clamps and magnetic switch.
  • Easy adjustment for height and depth.
  • Air-hydraulic system. The distance between drills can be fixed.
SPECIFICATIONS:
MODEL HS-502 HS-503 HS-504 HS-505 HS-506
Motor 3HP x 2 3HP x 3 3HP x 4 3HP x 5 3HP x 6
Spindle speed 3400rpm/60HZ, 2800rpm/50HZ
Drill bit size (M8 or M10) x 32mm x 5 holes
Stroke distance 0-80mm
Max. working length 2100mm(opposite), 2900mm(parollel)
Pressure 6kg/cm
Packing size 3200 x 1040 x 1320mm(126" x 41" x 52"), 3200 x 1160 x 1320mm(126" x 45" x 52")
N.W. (lbs/kg) 650kgs 750kgs 850kgs 950kgs 1050kgs
G.W. (lbs/kg) 850kgs 950kgs 1050kgs 1150kgs 1250kgs

* Specifications subject to change without prior notice.
