Vertical / Horizontal Boring Machine >> HS-310 Horizontal Boring Machine

HS-310

• Suitable for industrial and small workshop use.
• Easy and safe for operation with high accuracy.

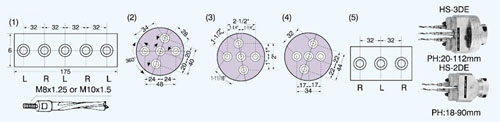

• Can fit with fixed or adjustable type multi-drill head.
• Small space occupied. Both bench and floor type machine available with versatility.
• With 45° graduation miter gauge for horizontal drilling in any angles.
• Drill bit and clamp derived by pneumatic operation.

MODEL

HS-310

Motor standard

3HP

Spindle speed

2900RPM

Drill bit size

(M8 or M10) x 32mm x 3 holes

Stroke distance

Table size

290 x 285mm

Machine size with stand

1076 x 483 x 1076(42" x 19" x 42")

Machine size w/o stand

1016 x 381 x 711(40" x 15" x 28")

Packing size

1118 x 521 x 1118mm(44" x 20.5" x 44")

N.W.

150kgs

G.W.

170kgs

* Specifications subject to change without prior notice.
