Straight Line Boring Machine >> HS-1H Hinge Boring Machine

FEATURES:
  • Convenient operation  is made by simply pressing on a foot pedal. Easy to maintain.
  • Mechanical digital read out allows for accurate and consistent depth setting.
  • Motor starts only when in boring stroke to extend service life, saving power consumption and reducing noise.
  • Boring unit from bottom side of workpiece has 2 advantages:
    Even when the thickness of workpieces differs, the depth doesn't change.
    The dust fails into machine's body.
    (You don't need to dean dust from the working table.)

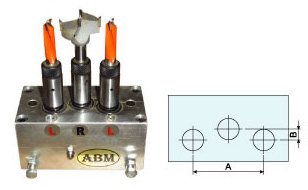

Hinge specifications

NO A B
1 38 7.5
2 42 11
3 45 9.5
4 48 -2.5
5 48 6
6 48 -75
7 48 9
8 52 5.5
9 52 6
SPECIFICATIONS:
SPECIFICATIONS

HS-1H
Hinge boring head 52 x 6 mm
Table size (mm) 490 x 1230 mm
No. of clamp 1
Total motor power  2 HP
Spindle speed 2800 rpm
N.W./G.W. 150kgs/170 kgs
Machine size 1230 x 730 x 1330 mm
Packing size 1250 x 830 x 1280 mm

* Specifications subject to change without prior notice.
