封邊機>> HS-5R 自動貼邊機

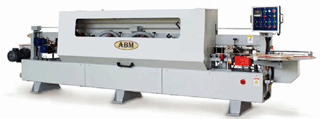

HS-5R

特性:
Robust machine structure, Compact design, Quick & Easy adjustments are all typical features of the "RC" Automatic Edge Banding Machine. Wide ranges of working units are available allow best composition for the application of edges such as PVC, ABS, Melamine, Veneer and Solid Wood.



Edge-feeding Edge-banding Edge-cutting
End-trimming Trim and fine finishinging Trimming

Scraping Buffing

型號

HS-5R

工件長度 160mm~up
工件寬度 65mm~up
工件厚度 10~60mm
邊材厚度 0.4~6mm/10mm
進給速度 5~28m/min
風源壓力 6kg/cm2
淨重/毛重 1500/1760 kg
機器尺寸 5050 x 1200 x 1480
包裝尺寸 5050 x 900 x 1710

* 以上所有機型規格、形狀如有改變,恕不另行通知。.
