 鉋類機械

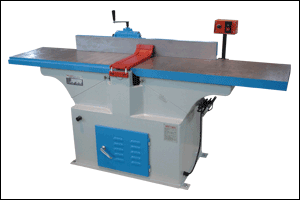

>> HS-112, HS-116
手押鉋
|
| 型號 |
HS-112 |
HS-116 |
| Table Area |
72"12" |
84"16" |
| Cutterhead Diameter |
4" |
4" |
| Maximum Planning
Width |
12"(305mm) |
16"(470mm) |
| Maximum Planning
Depth |
3/4"(19mm) |
3/4"(19mm) |
| 馬達 |
3P, 2HP |
3P, 5HP |
| Speed of Cutterhead |
5200RPM |
5200RPM |
| 淨重 |
660 lbs(380kg) |
1100 lbs(500kg) |
| 毛重 |
836 lbs(460kg) |
1320 lbs(600kg) |
| 包裝尺寸 |
78" x 25" x 40"
(1980 x 640 x 1020mm) |
88" x 30" x 42"
(2235 x 762 x 1066mm) |
|
* 以上所有機型規格、形狀如有改變，恕不另行通知。. |
|
